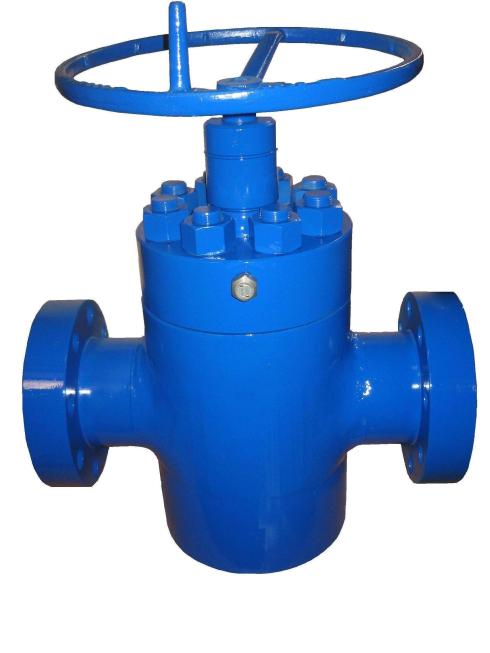

LynCo\\\'s LD FC gate valve features a non-rising stem with a slab gate, floating seat ring body bushing design to provide safe dependable service.  It is available in flanged or threaded ends in standard bore from 1 13/16\\\" thru 4 1/16\\\" in working pressures of 5,000 PSI thru 10,000 PSI wp.

LynCo\\\'s LD FC gate valves in sizes 7 1/16\\\" in working pressures of 5,000 PSI thru 15,000 PSI working pressure are available upon request.

Full-Bore Thru-Conduit Design

• Maximizes valve service life
• Eliminates the collection of destructive particles

Floating Slab Gate and Seats

• Produces a positive pressure energized seal
• Body pressure equalizers across the seat ring/body bushing, eliminating body erosion in the seat pockets

Metal-to-Metal Seals

• Body/bonnet interface, gate/seat ring/body bushing interfaces, body/body bushing interface

In-line Repairability

• Seat rings, body bushings, gate, stem are easily replaced in the field

Metal-to-Metal Backseat

• Allows for the body pressure containment in the case of stem packing leak

Long Life, Low Maintenance

• Simple routing maintenance program limits repairs, eases operation, protects against corrosion, and extends service life


Chart: XLS
